21MHz CW 6W transmitter based on MIZUHO QP-21

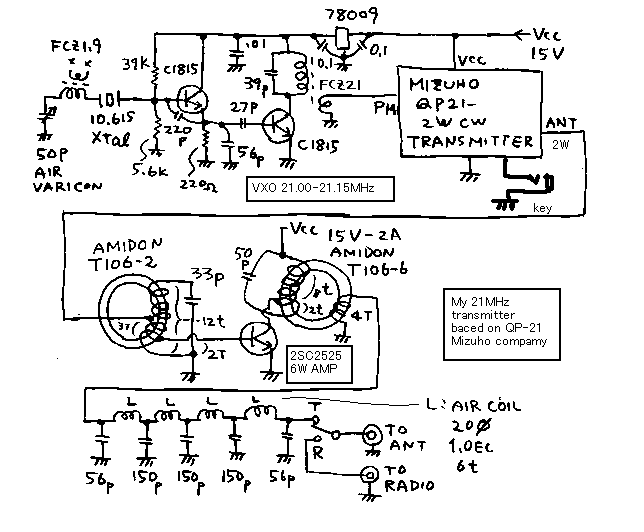

I will show you one of my first projects. QP-21 is a CW kit transmitter by MIZUHO company famous in Japan. I began my amateur-activity with this QP-21 transmitter. After half a year from beginning, I add the VXO and power AMP for QP-21. The VXO is normal transistor VXO. 50pF air variable capacitor is used on it. The doubler can generate a frequency from 21.00MHz to 21.15MHz. Power AMP is class C type. The tuning coil is set on the input and output side of the transistor. I tuned the tap of it. The impedance matching is made by the tap of it. If I made this amplifier now, I would use a wide band transformer instead of the tuning coils. The transistor of it is 2SC2525. This transistor is made by Fujitu company. Pc is 120W. Ft of it is only 80MHz. This transistor is made to use an audio amplifier. Therefore the power gain of this amplifier is very low. This is a reason why I could not construct a wide band amplifier. On that years I did not have an idea that to use a UHF transistor for HF wide band amplifier. This machine is not mounted on the shielded case. I feel it is terrible now. I operated this machine for three years. I got WAC with this machine. Therefore this is monumental project for me.----qp21.gif
21MHZCW送信機
私の初期の作品をもう一つお見せしましょう。私がアマチュア無線を始めたのはQP21というミズホの2W、CW送信機でしたが、開局して半年後にこれをVXO化して、21MHzのCWバンド内を移動出来る様にして、同時に6Wのパワーアンプを付けたものです。VXOは、トランジスターのありきたりの回路で、ダブラー付きです。50Pのバリコンはエアバリコンを使っています。パワーアンプは、C級動作で、入出力にトロイダルコアーの同調回路を設け、タップの位置を調整してインピーダンス変換を行っています。今なら、ここには、広帯域トランスを使う所ですが、当時はまだ、同調回路のタップダウンしか、インピーダンス変換の方法を知りませんでした。このアンプに使った2SC2525は、富士通のトランジスターで、PC120W,ft=80MHzという低周波用の物ですので、21MHzでは、利得が少なく、2W入力で6Wしか取れていません。広帯域アンプとしなかった理由は、ここにもあります。当時はまだ、UHF用の羽の生えたトランジスターをHFの広帯域アンプに使うのに抵抗がありました。ケースはシールドではなく、半開きのシャーシーを使っています。 当時は、テレビは共同受信の、社宅に住んでいたので、TVIの心配はこれでもありませんでしたが、今から考えると恐ろしい事です。私は、この送信機で3年程度運用して、WACを取得しました。これだけで、3年も遊べた、私には記念すべき作品です。
