Crystal-filter good for CW and AM .** **

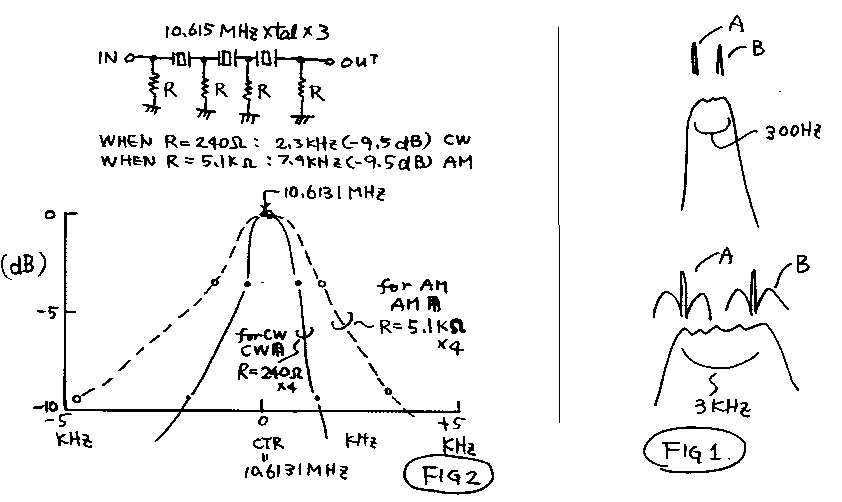

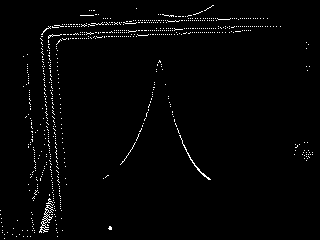

I made CW and AM transceiver with ladder-crystal-filter. You can see about them on another page of my homepage. But I can not be satisfied with them. See fig1! 300Hz- narrow-filter is good for 7MHz CW. It evades QRM in crowded band. But when I tune a signal, signal A and B in figure1 can be heard with the same strength. I think that a single paek filter is better than a band pass filter. With the same reason, band-pass-filter is not good for AM-receiver. See fig2! It is the ladder filter. The capacitor of it is replased with some resisters. The smaller of the resister, the narrower the band. But, anyway, the characteristic of it has a single peak. I want to use it for my next projects.

CWおよびAMに適している水晶フィルター.** **
私は,CWおよびAMトランシーバーをラダー型水晶フィルターで作りました.私のホームページの別のページでそれらについて紹介しています.しかし,私は,それらに満足していません.fig1 を見て下さい! 300Hz狭帯域フィルターは,7MHz CW に適しています.それは,混雑したバンドでQRM をうまく避けます.しかし,私が,受信信号に同調するときに,figure1 のシグナルのA ,およびB は,同じ強さで聞こえてきます.ですから、いわゆる単峰フィルターの方が,バンドパスフィルターよりベターではないでしょうか.同じ理由で,バンドパスフィルターは,AM受信機に適していないと思います.fig2 を見て下さい! それは,はしごフィルターです.そのコンデンサーは,抵抗で置き換えられています.抵抗が小さい方が,バンドは狭くなります.しかしとにかく,それの特性は,単峰特性です.私は次のプロジェクトにそれを使いたいと思います.
