6AQ8-3 valve radio

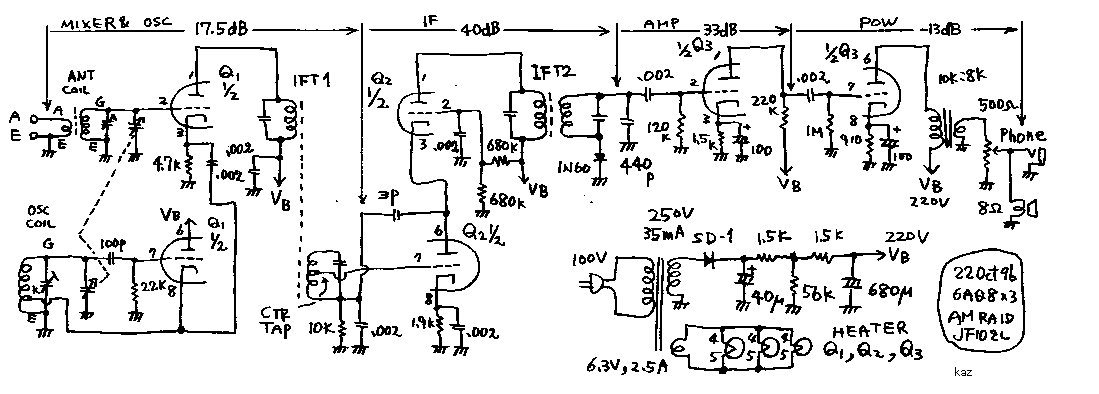

In my junior high school, I learned the circuit of 5-valve-middle-wave-radio. 6BE6-6BD6-6AV6-6AR5-5MK9 was his lineup. Last year, I discovered my broken handmade radio. I decided to repair it, with new lineup. After some examinations, I decided the line up as 6AQ8-6AQ8-6AQ8. The converter is made of cathode-injection-mixer. If- amplifier is made of cascade amplifier. Audio AMP is made of two stage triode power amplifier. This radio was made by 12AX7A originally. But 6AQ8 can provide more gain and more power totally. I think you can use all the double-triode, 12AU7, 12AT7, 6RHH2, 12BH7, 6FQ7.6SN7-GT, etr. But you cannot use cathode-common-double-triode like 6J6. This radio has very small output power as 62mW. Total gain of it is 17+40+33-13=77dB. The usual 5 valve super heterodyne radio has total 100dB gain. This gear is a little poor gain but acceptable. It is used as my personal radio with 10m wire antenna in my shack.

If you are not familiar to this tube, 6AQ8, I will explain about it. The character of this valve is like that of 12AT6. But different from 12AT6, 6AQ8 has shield between two triodes inside of this valve. Of cause the heater of them are difference. 6AQ8 was made to use FM tuner.


9. 6AQ8,3球真空管 ラジオ

中学校の技術家庭の授業で、私は、5球真空管中波ラジオの回路を勉強しました。(私は昭和31年生まれの、最後の旧過程(球過程の人間ですHIHI)当時のラジオは6BE6-6BD6-6AV6-6AR5-5MK9というラインアップでした。

昨年,昔、高校生の頃に作った高一中2ラジオの残骸を、物置の段ボール箱の中から見つけましたので、それを修理することにしました。ただの修理では面白く無いのと、元々このラジオがテレビ様のハイgm管を使っている為に、全てが発振気味なので、そのまま直してもだめそうでした。それで,色々実験しながら、中波ラジオを新しいラインアップで作ってみました。6AQ8-6AQ8-6AQ8 というラインナップです。周波数変換器は,陰極注入混合器(カソードインジェクティドミキサーといったほうが分かり良いでしょう)です。中間周波はカスケード増幅器です。オーディオのアンプは,三極管電力増幅器です。このラジオは,最初は12AX7A で作りましたが,6AQ8に換えた所,12AX7Aよりもより多くの利得と出力を得ることができました。もし同様の製作をされるならば、いろいろな双三極管12AU7,12AT7,6RHH2,12BH7,6FQ7.6SN7-GT ,等などを使うことができると思います。しかし,陰極共有タイプの双三極管は、カスケード接続ができないので使えません。このラジオは,62mW と小さい出力電力ですが、これでも(そうだと思って聞けば)「魅惑の3極管アンプ」の音がします。このラジオの総合利得は,17 + 40 + 33-13 = 77dB です。普通の5球スーパーが100dB程度の総合利得ですので、ちょっと及びませんが、まあまあでしょう。10m のワイアーアンテナをつなぐと、個人ラジオ(ホームラジオに対する概念;皆でがやがや聴くのには向かない場合の定義)として使えます。
