4GK5 QRP-GG(Grounded Grid) Power AMP
In Japanese CQ magazine , some projects by 7L1OPH ( Mr.Yamano ) of GG AMP is informed. His AMP had output power about 100W or 500W. I wanted to make them. But I did not have the license to handlel big power. I did not have 10W exciter. Therefore I decided to make QRP GG AMP.

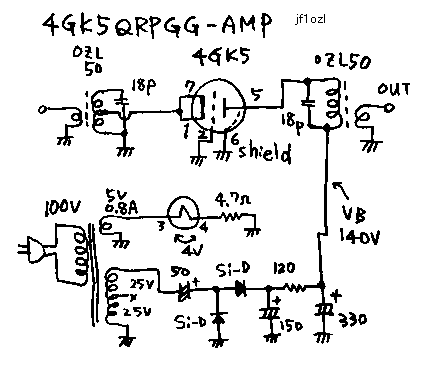

I tried many types of tubes. 6FQ7, 6AV6, 6C4 made no gain. I looked a textbook of NHK ( Nippon Hoso Kyoukai ) . The textbook teached me that the valve must have small Rp ( plate resistance) for the GG AMP. The textbook teached me that the valve must have big gm ( conductance ) for the GG AMP. I have 100 types of tubes. 4GK5 was the tube made to use the tuner of the TV. See the circuit! This AMP was made to use for 50MHz. This AMP has 7dB gain. Maximum power of it was 1.4W. I enjoyed to make GG AMP. I enjoyed the low gain of it.

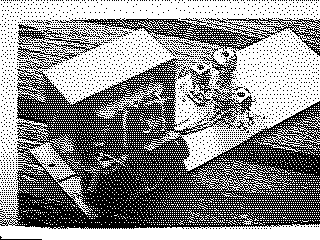

CQ誌で,7L1OPH ( 山野OM ) によるいくつかのGG アンプが,紹介されました.彼のアンプは, 100W ,あるいは500Wのパワーを出力していました.私は,それらを作りたかったのです.しかし,私は,大きいパワーを取り扱うためのライセンスを持っていませんでした.私は,10W のエキサイターさえ持っていません.それで,私は,QRPでGGアンプを作ってみました.< BR >私は,多くの型の真空管を試してみました.6FQ7や,6AV6 ,6C4 は,ゲインがありませんでした.それで、私は,NHK の教科書を見てみました.教科書によると、GG アンプのための真空管は,Rp ( プレートレジスタンス) が小さいほど、またgm ( 伝導力) は大きなほど良い事が判りました.私は,100種類の真空管(MT管)をを持っています.(実は、これらは、弟が私のST管10本を割った代償に取り上げた物です。HIHI)4GK5 は,テレビのチューナー用に作られた真空管です.回路図を見て下さい! このアンプは,50MHz用です.このアンプは,7dBのゲインを持っています.その最大の出力は,1.4Wでした.私は,GGアンプの実験を,楽しみました.同時に私は,それのローゲインを体験しました.(私は、時計さんや松本さんと違って「箱先派」じゃありません。この製作では、写真の様に基板で実験して、壊してしまいました)
