3 transistor 50MHz SSB transceiver...

When I was 12 years old, I played 3 transistor AM-CB transceiver. Yes, that was super-re-generative type. I said to my younger brother "Can you hear me, Makkun(the name of my brother)?" The very strong strange voice came from the speaker. "Break, I am SUGIMANI-1534(That was CB callsign)." That was my first contact with radio station. 3 transistor has special meaning for me. ..
Several years ago, JH1FCZ gave us the theme as follows. Make transceiver with only three transistor. How many QSO can you make with it? This is one of my answer for this theme.. ..

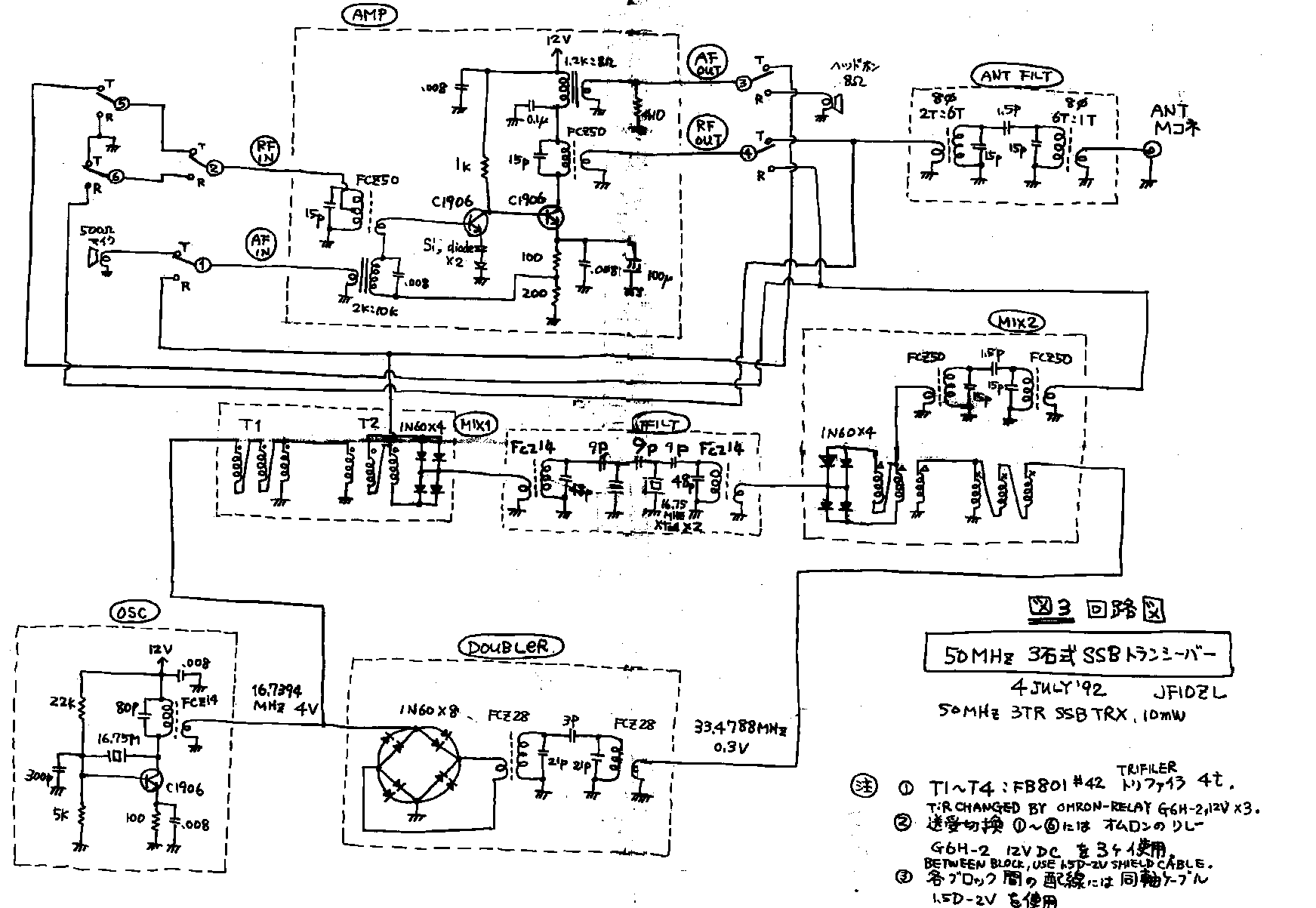

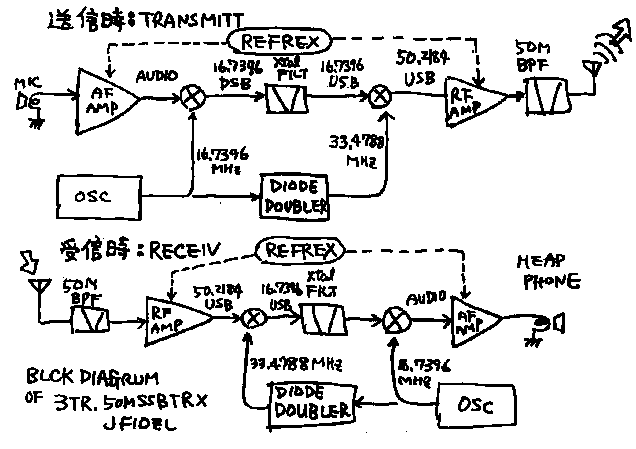

See fig1! Block diagram indicates the normal single IF ssb transceiver. But it's carrier and convertor is made by the same one oscillator. It's AF-AMP and RF-AMP is made by the same wideband amplifier. The signal of transmitter and receiver go through the each block, perfectly counter side of each other. I feel this block diagram very beautiful, because of it's symmetrically. Of course you can make AF and RF AMP separately. Of course you can make two oscillator separately. You can see the 2W SSB transceiver on my another page. It's a example.
I could make about 30km QSO on the hill with this transceiver. It's output power is 10mW.

3石式50MHz SSB トランシーバー
まだ12 才だった頃に,3石式の超再生式CBトランシーバーで遊んでいた時の事です.弟に向かって言いました「聞こる?まっ君 ( 私の兄弟の名前です) 」その時とても強い不思議な声が,スピーカーから聞こえてきました.「ブレイク,此方は,杉並1534です( それはCBのコールサインでした) .」それは,ラジオ局と私の最初の接触でした.3石式は,私にとって特別の意味を持っています.
何年か前に,JH1FCZ は,以下のように我々に主題を与えました.「トランシーバーをたった3トランジスターで作ってみて、どれだけ多くのQSOを,達成することができるか?」このページに紹介した物は,この主題に対する私の1つの答えです.
図1を見て下さい! ダイヤグラムは,普通のシングルコンバージョントランシーバーを示しています.しかしこの機械では,キャリアー,およびコンバーターの発振器は1個で共通です.それは,可聴周波数アンプ,および高周波アンプも,同じ1個の広帯域アンプで作られています.送信時,および受信時の信号は,お互いのそれぞれのブロックを,完全に対称的に逆方向に流れます.私は,それゆえこのブロック図をとても美しいと感じます.もちろん,送信時と受信時で別々に、低周波増幅器や,高周波増幅器を組むことができます.それから、もちろん,キャリアー用と周波数変換用の2個の別々な発振器を作ることもできます.私の別のページで50MHz2W SSB トランシーバーをご覧ください.それは,その例です.
私は,このトランシーバーで近所の丘(朝日峠)から30km の距離の局とQSOをすることができました.この機械の出力電力は10mWです。

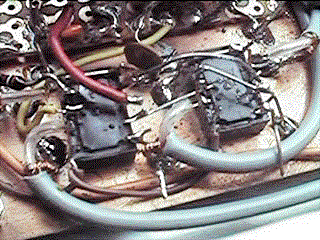

3trssbph1.gif---Small relays are fixed on the boad like cockroachs on the cockroack collecter.

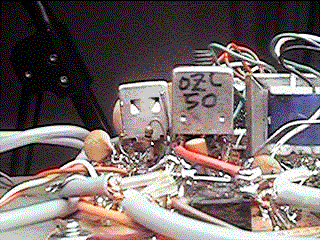

3trssbph2.gif---You can see the coil named OZL50

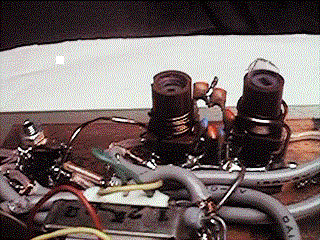

3trssbph3.gif----Here I show you the Filter unit. 8mm bobbin are used.

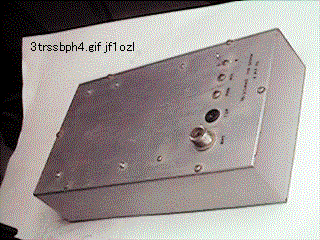

3trssb4.gif----There are no tune dial on this gear.

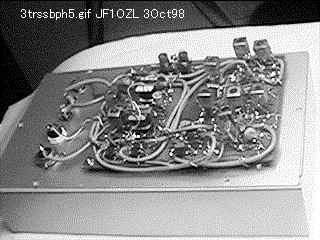

3trssbph5.gif---Main circuit boad is attached on the plate of the box.
